Narrow Series Welded Chain With Attachment

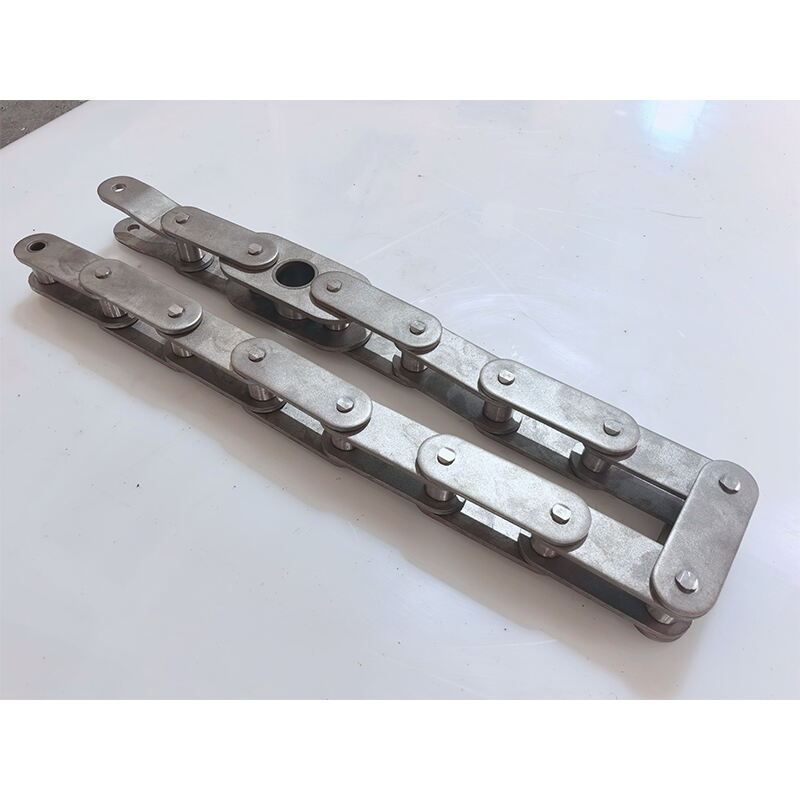

WHC131 Welded Mill Chain Narrow Series Welded Chain With Attachment

DOWNLOAD

Introduction

Introduction

Product brief description

Jointed with various attachments in virtue of welding or bolting methods, the welded steel chains can meet the needs for diversity of different production lines.

Product details description

JINQIU CHAIN, as a prominent chains manufacturer, we offer a complete range of WH and WR narrow series and WDH wide series of welded steel chains. They are mainly used in woodworking, grain and oil processing and paper making industries and more.
Our welded steel chains are specially designed for demanding applications where strong impact and material wearing and lots of dust. These power transmission product or conveyor part are engineered from special alloy steels using finite element analysis technology and best-in-class manufacturing technology and equipment. As a result, the welded cranked link chains have excellent resistance to high load impact and long lasting wear resistance while providing low cost.

WHC131 Welded Mill Chain Narrow Series Welded Chain With Attachment factory

Chain No.	Average Pitch	E(mm)	Sidebar		Pin		Barrel	F(mm)	Min.Ult. Strength (KN)	Avg.Weight chain kg/FT
Chain No.	Average Pitch	E(mm)	T(mm)	H(mm)	D(mm)	A(mm)	R(mm)	F(mm)	Min.Ult. Strength (KN)	Avg.Weight chain kg/FT
WH78	66.27	25.40	6.40	31.75	12.70	75.00	21.34	51.00	146.80	2.00
WH78XHD	66.95	25.40	9.50	31.75	14.29	82.00	25.40	50.80	163.50	2.80
WH82	78.10	28.58	6.40	31.75	14.29	82.30	25.40	57.15	160.00	2.20
WH82XHD	78.10	28.60	9.70	38.10	19.05	96.50	31.75	60.90	254.00	3.90
WH9103HD	78.11	31.80	9.70	38.10	19.10	92.30	31.80	57.90	287.00	4.00
WH124	101.60	38.10	9.70	38.10	19.05	107.00	31.75	71.40	250.00	3.60
WH124XHD	103.20	38.10	12.70	50.80	25.40	119.50	44.45	76.20	542.00	6.40
WH111	120.90	57.10	9.60	38.10	19.00	123.90	31.70	85.80	254.00	3.64
WH106	152.40	38.10	9.70	38.10	19.05	107.00	31.75	69.85	250.00	3.00
WH720C	152.40	28.58	9.70	38.10	19.05	96.75	31.75	60.32	254.00	2.95
WH110	152.40	47.70	9.60	38.10	19.00	117.30	31.70	76.20	357.00	2.14
WH106XHD	153.67	38.10	12.70	50.80	25.40	120.20	44.45	76.20	542.00	5.60
WH132	153.67	76.20	12.70	50.80	25.40	156.00	44.45	112.30	542.00	6.50
WH132XHD	153.67	76.20	15.88	50.80	25.40	168.86	44.45	118.60	543.00	6.90
WH150	153.67	76.20	12.70	63.50	25.40	156.00	44.50	112.30	620.00	7.40
WH155	153.67	73.20	12.70	63.50	28.40	158.70	41.10	111.20	771.00	7.71
WH157	153.67	76.20	15.90	63.50	29.10	171.00	44.50	117.50	820.00	9.20
WH150XHD	153.67	76.20	15.70	63.50	28.40	171.40	41.10	117.30	920.00	7.98
WH159	155.57	69.85	15.90	76.20	31.75	170.50	50.80	117.50	950.00	11.30

WHC131 Welded Mill Chain Narrow Series Welded Chain With Attachment factory

Chain No.	style	W1	W2	W3	L	G
WH144	1	38.10	101.60	152.40	20.62	50.80
WH124XXXHD	R	52.40	109.52	150.82	20.65	50.80
WH166 PLUS	V	28.50	95.25	125.00	20.64	63.50
WH144 PLUS	F	38.10	101.60	152.40	20.62	50.80
