Palm Oil Chain

6'' PITCH

Introduction

Introduction

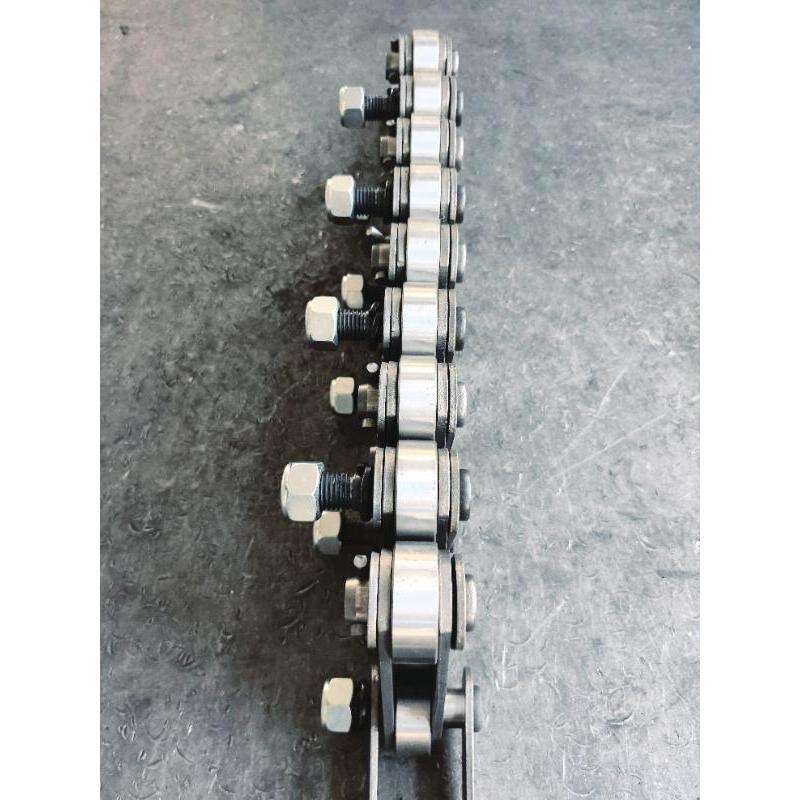

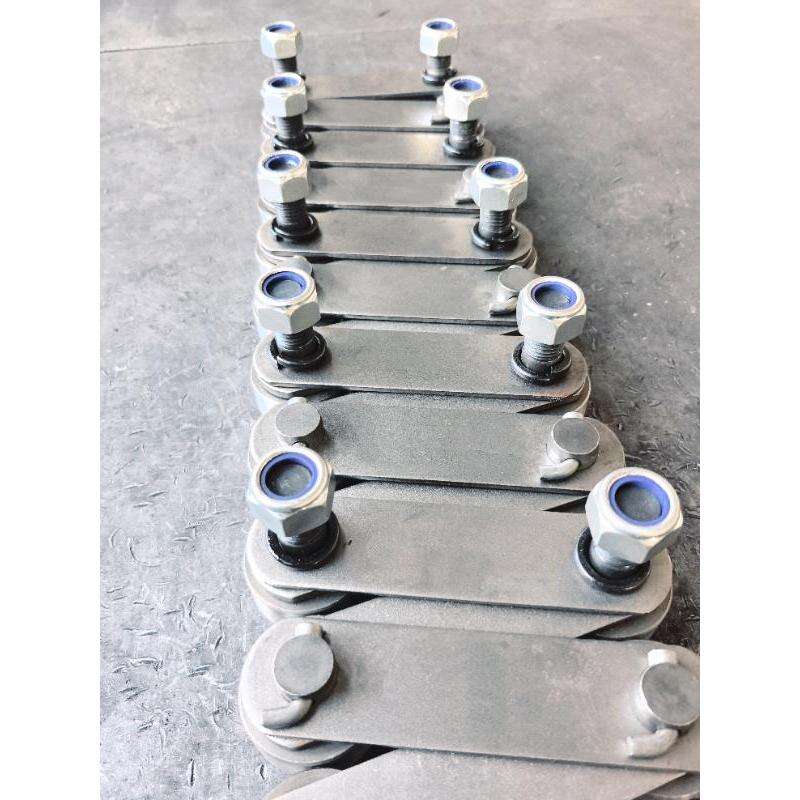

Palm oil chain refers to the chain uses in palm pol production equipment from palm fruits to finished palm pol, and the products cover every link of palm oil production.

JINQIU CHAIN, as a prominent chains manufacturer, we carries out detailed material selecting, precision machining, special heat treatment, precision assembling and pre-lubricating for the production of our palm oil mill chain. As a result, our palm oil mill chain has good precision, durability, abrasion resistance, and can fulfill high-efficiency conveyance of materials.

Chain No.	Pitch P mm	Inner Width E(mm) min	Sidebar		Pin	Roller diameter F(max) mm	Average Strength Q(KN)
Chain No.	Pitch P mm	Inner Width E(mm) min	T mm	H mm	D mm	Roller diameter F(max) mm	Average Strength Q(KN)
3076	76.20	17.40	4.00	25.40	13.97	31.75	71
9503	76.70	31.75	6.40	38.10	14.29	30.16	273
4075	101.60	17.40	4.00	25.40	13.97	31.75	71
5125	101.60	21.30	4.80	31.75	11.43	47.75	151
5126	101.60	26.90	6.40	28.70	11.43	44.45	151
ES90R20	101.60	21.34	4.83	31.75	11.43	47.75	174
ES94R30	101.60	29.97	6.35	38.10	14.48	50.80	263
5305	160.00	38.10	6.40	50.80	17.48	70.00	290

Chain No.	Pitch	Inner Width	Sidebar		Pin			Roller	Average Ultimate Strength Q(KN)
Chain No.	P	E(mm) min	T(mm)	H(mm)	D(mm)	C(mm)	A(mm)	F(mm)	KN
1016H	101.60	19.00	6.40	38.10	19.05	36.00	M16	47.63	190
5289	152.40	25.00	6.40	50.80	22.07	40.00	M20	66.80	280
09060	152.40	38.10	9.50	50.80	18.90	38.00	M18	69.85	390
6889	152.40	38.10	8.90	60.96	31.75	50.00	M30	88.90	516
5305	160.00	38.10	6.40	50.80	17.48	36.00	M16	70.00	290
5326H	152.40	19.00	5.10	38.10	19.05	38.90	M18	47.50	158
POM4P32	101.60	19.05	5.10	38.10	19.05	36.00	M16	47.63	158
POM6P40	152.40	19.05	6.00	38.10	19.05	37.00	M18	47.63	178
POM6P60	152.40	25.40	6.00	50.80	22.10	40.00	M20	66.80	267
POM6P80	152.40	38.10	8.00	50.80	19.05	38.00	M18	69.85	356
ES4P23	101.60	19.00	5.10	38.10	19.05	36.00	M16	47.63	158
5337	152.40	25.00	5.10	44.50	22.07	45.00	M20	66.80	158
ES6P36	152.40	25.00	7.80	50.80	26.90	44.00	M24	66.70	318
ES604R30	152.40	30.00	6.40	38.10	14.29	36.00	M12	50.80	170
EUS4161	101.60	19.05	4.50	38.10	19.05	37.08	M18	47.63	80
EUS4162	101.60	25.40	6.40	50.80	26.90	39.88	M20	66.68	142
EUS6241	152.40	19.05	4.50	38.10	19.05	37.08	M18	47.63	80
EUS6242	152.40	25.40	6.40	50.80	26.90	39.88	M20	66.68	142
EUS6243	152.40	38.10	9.00	60.96	31.75	50.04	M30	88.90	223
EUP4161	101.60	19.05	4.50	38.10	19.05	37.08	M18	47.63	116
EUP4162	101.60	25.40	6.40	50.80	26.90	39.88	M20	66.68	223
EUP6241	152.40	19.05	4.50	38.10	19.05	37.08	M18	47.63	116
EUP6242	152.40	25.40	6.40	50.80	26.90	39.88	M20	66.68	223
EUX4161	101.60	19.05	4.50	38.10	19.05	37.08	M18	47.63	134
EXU4162	101.60	25.40	6.40	50.80	26.90	39.88	M20	66.68	267
EUX6241	152.40	19.05	4.50	38.10	19.05	37.08	M18	47.63	134
EUX6242	152.40	25.40	6.40	50.80	26.90	39.88	M20	66.68	267
