5025 conveyor chain sugar chain

Introduction

Introduction

Product Brief Description
A wide variety of Intermediate Carrier Chains are available for selection.

Product Details Description

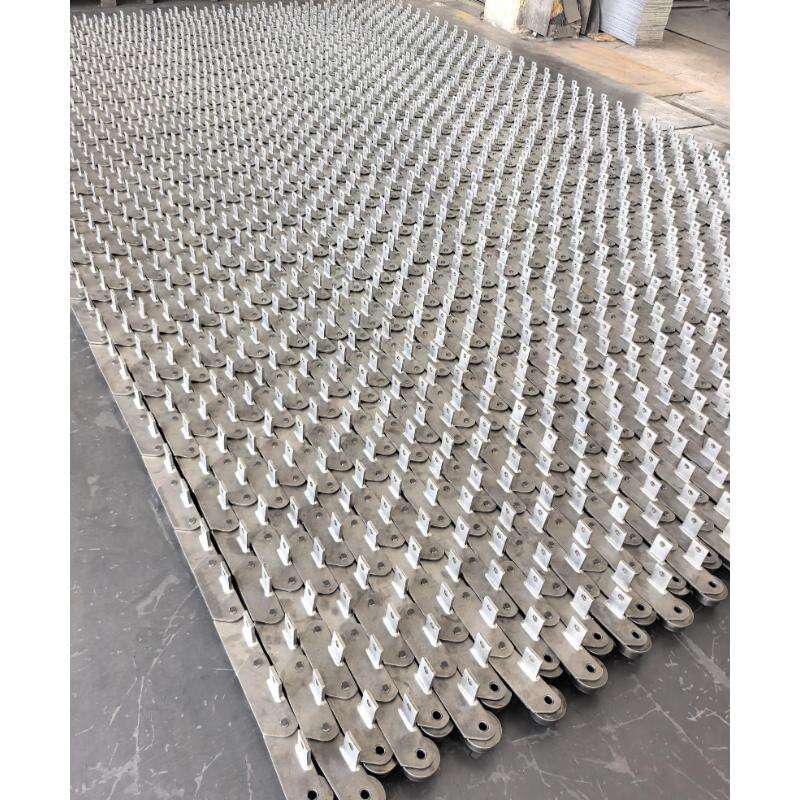

JINQIU CHAIN, as a prominent chains manufacturer, we offer a complete range chains in sugar mills from cane carrier, Inter-carrier and bagasse conveyor. We have rich design experience and manufacturing technology, and can provide system solutions for you.
Basing on our understanding of sugar refining process and equipment, we know how to produce a bent side pate chain & attachments and sugar mill chain that is suitable for long-term transmission and hoisting applications in sugar refining industry.

Chain No	Pitch P	E(mm) min	Sido bar		Pin		Bush	C(mm)	Average Ultimate Strength Q(KN)
Chain No	Pitch P	E(mm) min	T(mm)	H(mm)	D(mm)	A(mm)	R(mm)	C(mm)	Average Ultimate Strength Q(KN)
5002 FG35 E4P	153.67	50.80	13.00	64.00	25.27	127.00	50.80	141.00	400
5025 FG36 E4P	152.4	50.80	1270	76.20	25.27	127.00	50.80	146.30	520
SS9967SJ	152.4	38.90	12.70	82.60	25.40	56.13	44.50	120.14	445
